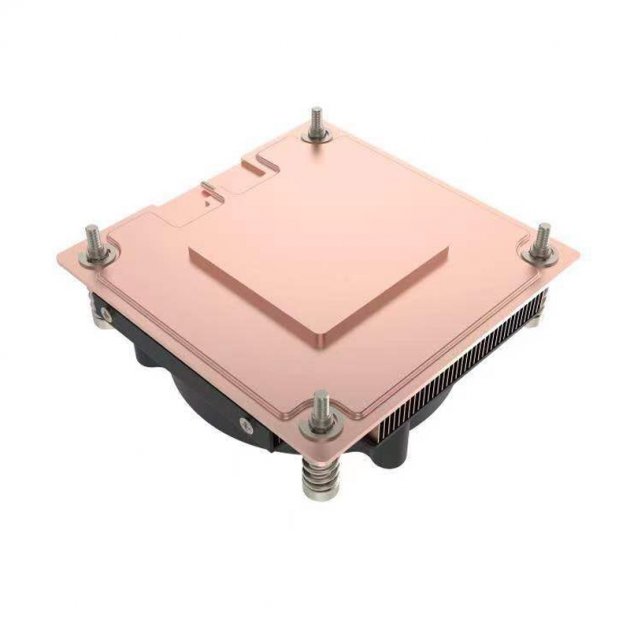

Freezer 3160
Passive solution for LGA1700
Add to inquiry box
Production information
| Model | Freezer 3160 |
| Size | L90*W90*H28mm |
| Fan Speed (RPM) | 3000(+/-800)-6600(+/-15%) |
| Fan Noise (dBA) | 62 (Max.) |
| Fan Airflow(CFM) | 21 (Max.) |
| Rated Voltage | 12 V |
| Connector Type | 4 pins PWM |
| Hole Pitch | 78*78mm |
| Materials | VC with Copper fins |
| Bearing Type | Two Balls |
| Power Dissipation | 150 W |
| Socket Type | LGA115X/1200 |
